CC-869 Quick Start Guide

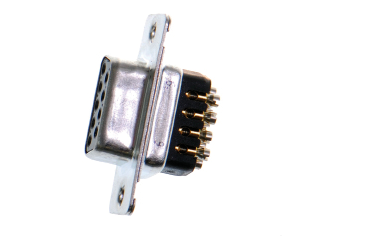

The Brainboxes CC-869 is a screw terminal wired 9 pin D connector from the Accessories range. It is suitable for wiring screw terminal connections into a standard 9 pin D connector, ideal for quick but secure solderless connections in the field.
Overview
The CC-869 features:
- 9 Pin D female connector

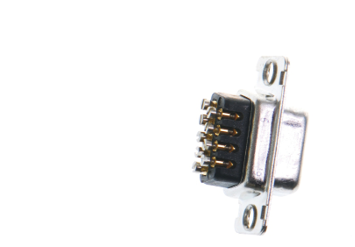

- Screw Terminal contact — brass with nickel-plating
- Insulating plastic back shell — with cable strain relief
Many industries use stripped wire screw terminals as the de facto connection method. This adapter enables devices with the ubiquitous 9 pin male D to be used in these situations.
Pin Outs
Please refer to the manufacturer's information for the product you wish to connect.
How to Fit the CC-869
To fit the CC-869 you will need: wire cutters, wire strippers, and a small screw driver (not included).
Step 1 — Prepare Wire
Prepare the wire to be connected. Strip back the insulation to expose the bare conductor.
Step 2 — Insert Wire and Secure
Insert the trimmed wire into the appropriate terminal connection. Tighten the screws to secure the connection.
Step 3 — Clip Connector into Housing
Clip the wired connector into the plastic housing.
Step 4 — Secure the Cable
Secure the cable using the cord grip.
Step 5 — Close the Casing
Push the two halves of the plastic casing together until they click.
