Where can I find the 3D/CAD/STEP data for the ED product range?
The following FAQ contains 3D models for the ED range of products in a STEP format.
For any additional enquiries, please contact: [email protected]
Please click on the part number to download the required 3D model .zip file:
Commercial:
Industrial:
| Product | Downloads |
|---|---|
| ED-516 | [3D-CAD-Step Data for ED-516.zip (4,376 kB)](http://www.brainboxes.com/files/pages/support/faqs/3D_Models/ED-588-527-516 Cased PCB 3D Step.zip "3D-CAD-Step Data for ED-516.zip") |
| ED-527 | [3D-CAD-Step Data for ED-527.zip (4,376 kB)](http://www.brainboxes.com/files/pages/support/faqs/3D_Models/ED-588-527-516 Cased PCB 3D Step.zip) |
| ED-538 | 3D-CAD-Step Data for ED-538.zip (3,201.8 kB) |
| ED-549 | 3D-CAD-Step Data for ED-549.zip (3,194.3 kB) |
| ED-560 | 3D-CAD-Step Data for ED-560.zip (3,013.0 kB) |
| ED-582 | 3D-CAD-Step Data for ED-582.zip (3,019.1 kB) |
| ED-588 | [3D-CAD-Step Data for ED-588.zip (4,376 kB)](http://www.brainboxes.com/files/pages/support/faqs/3D_Models/ED-588-527-516 Cased PCB 3D Step.zip) |
| ED-593 | 3D-CAD-Step Data for ED-593.zip (3,019.1 kB) |

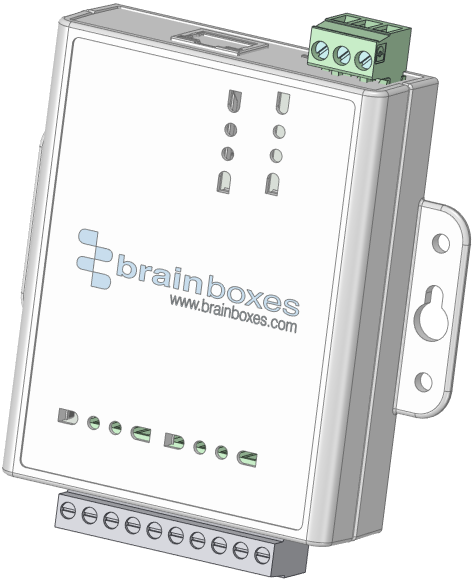

Here is an example of what the 3D data will look like:
