Discover your first device with BB-Eco

This guide takes you from a freshly-installed BB-Eco to your first discovered Brainboxes device, typically in under thirty seconds on a typical office or factory network.

Before you start

• BB-Eco is installed and the dashboard is open. (If not, see Install BB-Eco.)
• A Brainboxes ED, ES, or BB device is powered on and connected to the same network as your computer, ideally the same Layer 2 broadcast domain (same switch, no routers in the path).
• Your firewall allows BB-Eco to send and receive UDP broadcasts.

Auto-discovery (the easy path)

BB-Eco starts scanning for devices the moment the app opens. There is no button to press.

1. Connect your Brainboxes device to the network and power it on.
2. Switch focus back to BB-Eco.
3. Within a few seconds, the device appears in the dashboard.

BB-Eco uses SSDP (UPnP) under the hood: the same protocol Smart TVs and printers use to advertise themselves. It actively searches on every network interface and passively listens for the announcements devices make on their own (at power-on and periodically), so a device you plug in appears without waiting for the next search round. BB-Eco also listens for mDNS and adds Brainboxes devices it recognises there to the dashboard.

When a device announces it's going away or stops responding, its card flips to Offline rather than disappearing. Devices you've seen stay on the dashboard so you notice the absence. To remove a decommissioned device's card for good, use the remove control on the offline card.

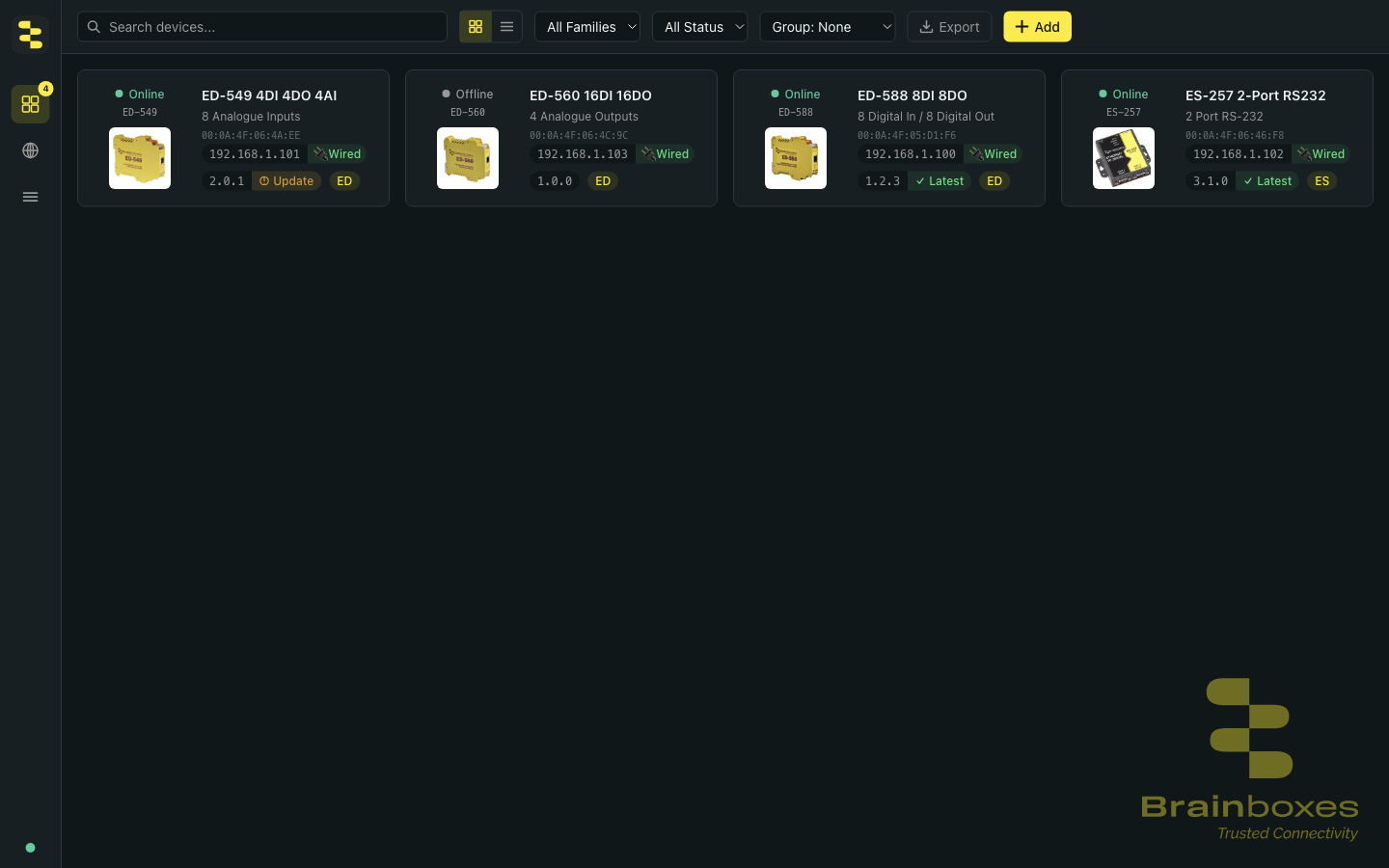

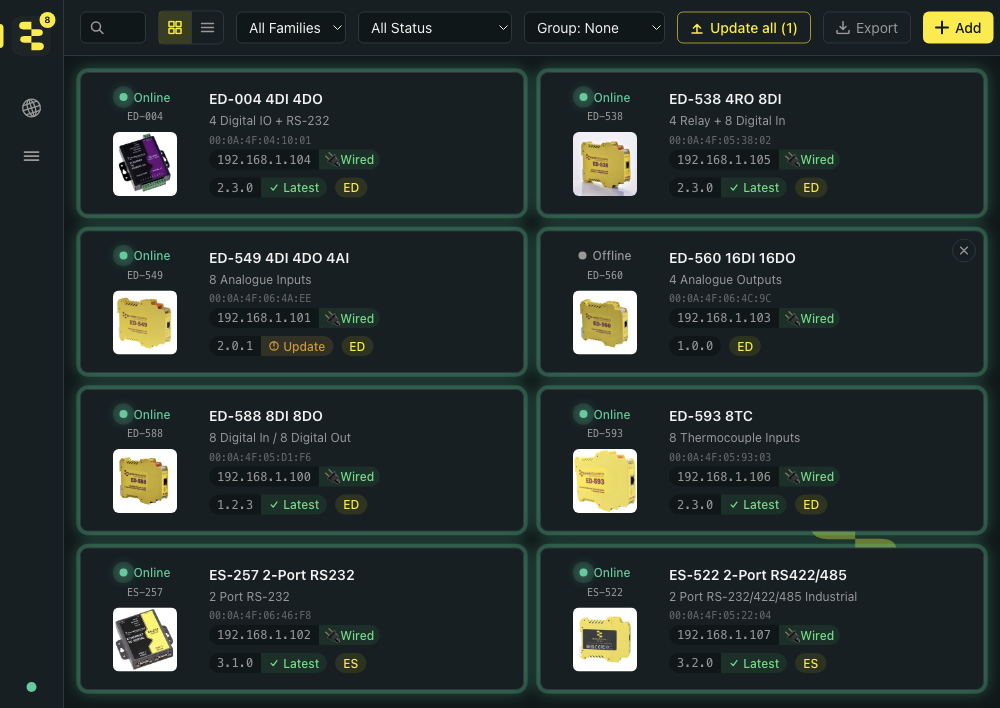

Each device card packs the essentials at a glance:

The orange Update pill is the cue that this device has firmware available. Clicking the card opens its detail panel and the Firmware tab takes you straight to the upgrade flow.

Click for full device details

Click any device card to open its detail panel, with model number, MAC address, firmware version, capabilities, and quick actions like Locate and Reboot. Hover any badge or chip on a card for a tooltip explaining what it means.

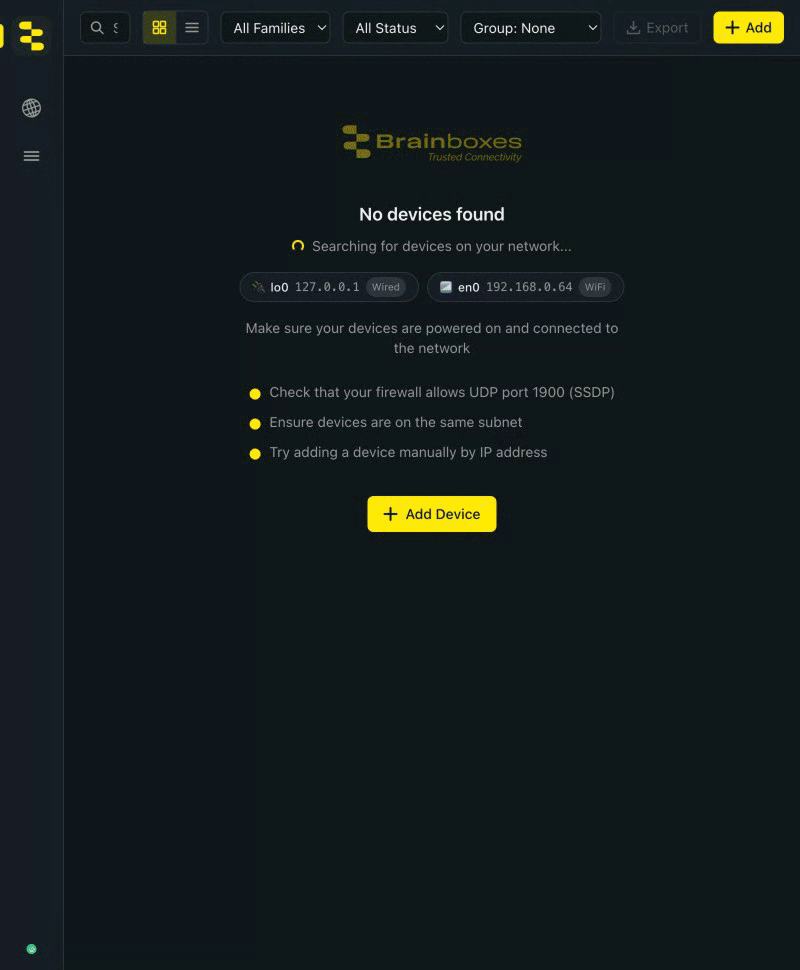

Locate is the answer to "which box is it?": it flashes the device's status LED so you can pick it out of a rack:

What if no devices appear?

Auto-discovery breaks when broadcasts can't reach BB-Eco. The most common causes:

Symptom	Likely cause	Fix
BB-Eco is on Wi-Fi, the device is on wired Ethernet	The Wi-Fi access point isn't bridging to the wired LAN	Connect your laptop to the wired network for discovery
You're on a corporate VPN	The VPN client blocks LAN broadcasts	Disable the VPN, or add the device manually (below)
The device is on a different subnet and/or VLAN	SSDP broadcasts don't cross routers or VLAN boundaries	Use Add (top bar) with the device IP
The device is plugged in but not powered	Confirm power LED is on	Power-cycle the device
A banner says a device is on its fallback address 192.168.127.254	The device got no DHCP lease within 60 s and is using its fallback address, which is not on your network	Click Add route on the banner, then give the device an address on your network: reach a device on its fallback IP address
Windows Defender Firewall is blocking	The firewall rule the installer offered was declined, or was removed later	Click Add firewall rule on the banner BB-Eco shows, or run bb-eco firewall status to see the effective state

For a deeper, layered checklist see BB-Eco finds no devices on my network; on IT-managed Windows machines, see the firewall rules guide.

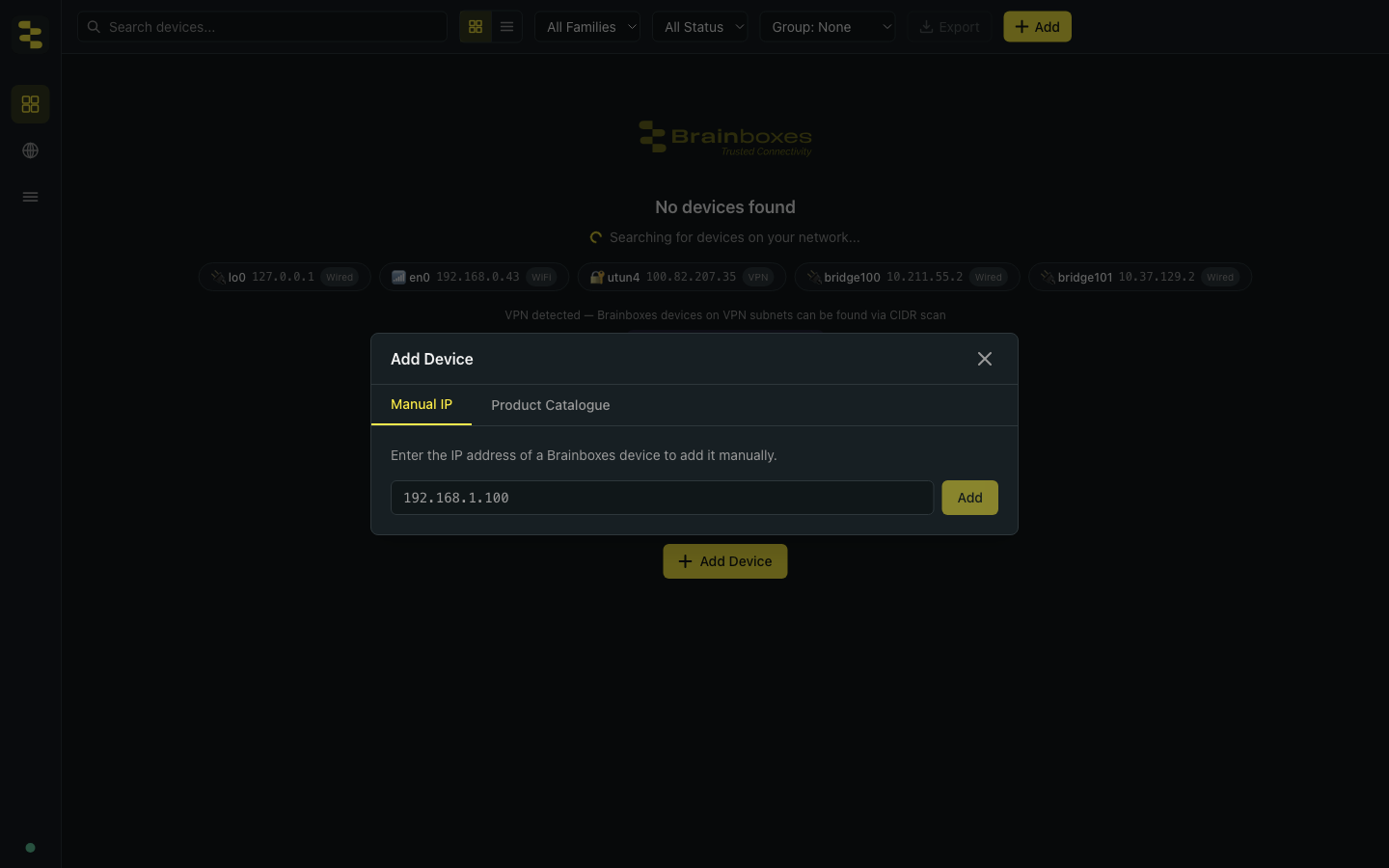

Adding a device manually

When auto-discovery isn't an option (cross-subnet, VPN, or restricted firewall), enter the device IP directly.

1. Click Add in the top bar, or Add device in the left rail.
2. On the Add Device page, type the device's IP address into the box at the top right.
3. Click Add by IP.

BB-Eco fetches the device's description.xml and devinfo.xml over HTTP, populates the dashboard card with model and capability information, and continues to monitor the device alongside auto-discovered ones.

Web server on another port?

If the device's web server has been moved off port 80 and UPnP is turned off on the device, type the port after the address, for example 192.168.1.100:90.

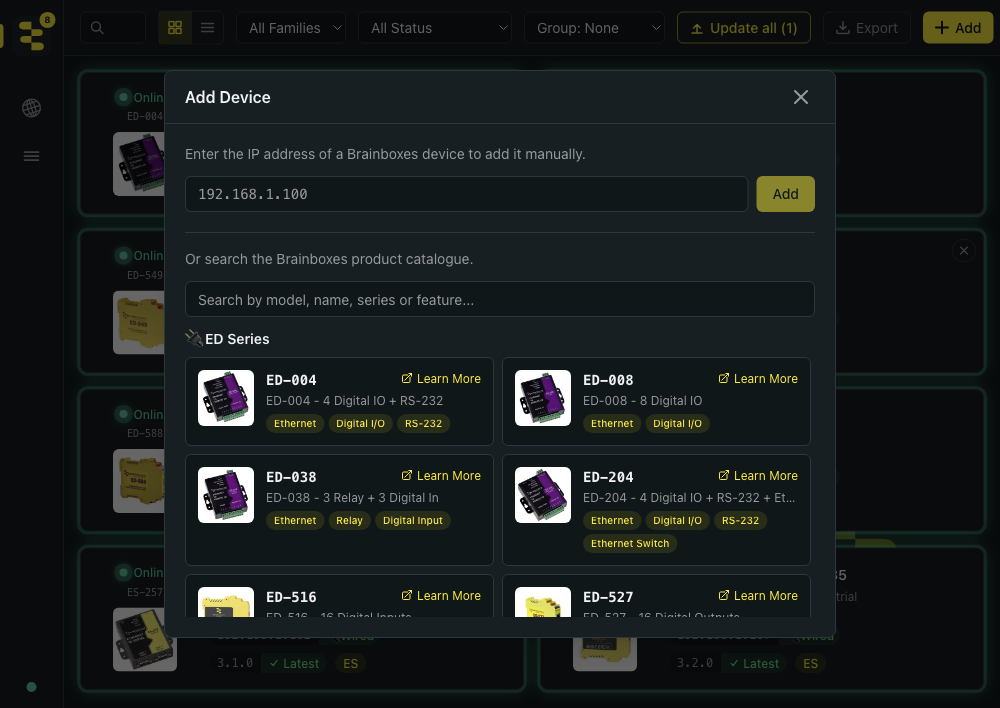

The same page doubles as a product browser: search the Brainboxes catalogue by model number, name, series, or feature (try "temperature" or "RS-485"), and Learn More opens the product page in your browser, which is useful when you're deciding what to order for the next cabinet.

IP unknown?

If you don't know the device IP, plug the device into your Layer 2 LAN (a desk-side switch is enough) and use auto-discovery to read the address, then move it back to its production network.

Filtering and grouping

Once you have several devices visible, the dashboard toolbar gives you:

• Search: by device name, model number, product description ("analogue", "RS-232"), IP, MAC, or firmware version. Matches partial strings.
• View: switch between grid and list. Grid is friendlier for site walkthroughs; list is faster to scan when you have dozens of devices.
• Filter: one button opens a popover to filter by Family (All, ED, ES, BB, SW) and Status (All, Online, Offline, Upgrade available, Upgrading, Stuck).
• Group: in the same popover, group the cards by Location, Family or Status (or None). The popover's reset clears the filters and the grouping together.

Discover from the CLI

If you've installed the BB-Eco CLI, the same auto-discovery is one command:

bb-eco discover

Output is a table of every Brainboxes device found, with IP, MAC, model, name, firmware version, update status, family, interface and network. Append --json or --csv for scriptable output:

Show only the devices with a firmware update available:

bb-eco discover --json | jq '.[] | select(.firmwareUpdateAvailable) | {modelNumber, ipAddress, firmwareVersion}'

Save the live inventory to disk:

bb-eco discover --csv > inventory-$(date +%F).csv

For cross-subnet, VPN, or any other case auto-discovery can't reach, add a device manually:

bb-eco discover add 192.168.1.50

The CLI persists discovered devices to the same on-disk cache the desktop app uses, so a subsequent bb-eco list shows everything from both sources.

See the bb-eco discover CLI reference for every flag.

Next step

Now that BB-Eco can see your device, upgrade its firmware safely, then save its configuration as a template.
