SW 16 Port Range Datasheet
Overview — Solutions for High-Speed Data Transfer, Extended Network Reach, and Robust Reliability
Designed for enhanced connectivity, Brainboxes Industrial 16 Port Ethernet Switches are a cost-effective solution to streamline installations, simplify maintenance and wiring complexity, and improve efficiency whilst reducing potential points of failure.
Available with Fast and Gigabit Ethernet, and with SFP, all Hero Ethernet switches come in an industrial hardened metal enclosure for reliable operation in demanding environments.
Functionality and Features
- Enhanced connectivity and flexibility: higher port count enables flexible network layout and device placement
- Integrated, adjustable DIN-rail mount with grounding
- Wide voltage input range (+5V to +30VDC) and dual redundant power inputs — ensures reliability and reduces the risk of power outages
- Industrial hardened enclosure and wide operating temperature range (-40°C to +80°C / -40°F to +176°F) — reliable operation in harsh environments

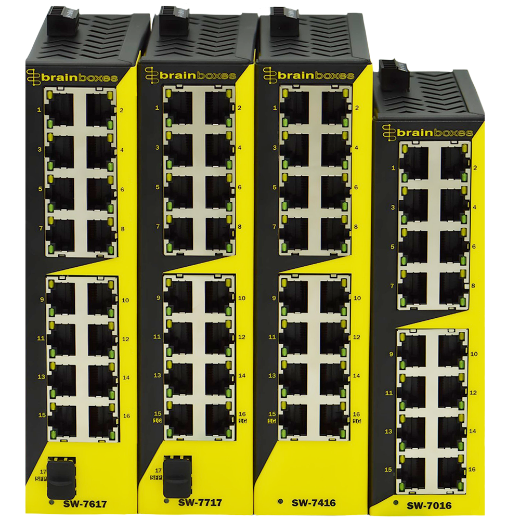

Product Variants
| Model | Fast Ethernet 10/100 BASE-T (RJ45) | Gigabit 10/100/1000 BASE-T (RJ45) | SFP 1000 BASE-X | Enclosure |
|---|
| SW-7016 | 16 | - | - | Hardened |
| SW-7416 | 14 | 2 | - | Hardened |
| SW-7617 | 16 | - | 1 | Hardened |
| SW-7717 | 14 | 2 | 1 | Hardened |
| Model | Power Consumption | Operating Temp | Product Weight | Product Size | GTIN (barcode) | Package Weight | Package Size |
|---|
| SW-7016 | 3.8W Max @ +5V to +30VDC | -40°C to +80°C / -40°F to 176°F | 0.53 kg / 18.68 oz | 158 x 103 x 43mm / 6.22 x 4.05 x 1.69in | 837324005196 | 0.67 kg / 23.63 oz | 200 x 140 x 80mm / 7.87 x 5.51 x 3.15in |
| SW-7416 | 6W Max @ +5V to +30VDC | -40°C to +80°C / -40°F to 176°F | 0.64 kg / 22.64 oz | 180 x 108 x 43mm / 7.09 x 4.25 x 1.69in | 837324005202 | 0.75 kg / 26.46 oz | 200 x 140 x 80mm / 7.87 x 5.51 x 3.15in |
| SW-7617 | 7.5W Max @ +5V to +30VDC | -40°C to +80°C / -40°F to 176°F | 0.64 kg / 22.64 oz | 180 x 108 x 43mm / 7.09 x 4.25 x 1.69in | 837324005219 | 0.75 kg / 26.46 oz | 200 x 140 x 80mm / 7.87 x 5.51 x 3.15in |
| SW-7717 | 7.5W Max @ +5V to +30VDC | -40°C to +80°C / -40°F to 176°F | 0.64 kg / 22.64 oz | 180 x 108 x 43mm / 7.09 x 4.25 x 1.69in | 837324005226 | 0.75 kg / 26.46 oz | 200 x 140 x 80mm / 7.87 x 5.51 x 3.15in |
Pinouts
Ethernet Ports
| Pin | 10/100 Fast Ethernet | 10/100/1000 Gigabit Ethernet |
|---|
| 1 | Tx+ / Rx+ | TxRx A+ |
| 2 | Tx- / Rx- | TxRx A- |
| 3 | Rx+ / Tx+ | TxRx B+ |
| 4 | | TxRx C+ |
| 5 | | TxRx C- |
| 6 | Rx- / Tx- | TxRx B- |
| 7 | | TxRx D+ |
| 8 | | TxRx D- |
Power Terminal
| Pin | Function |
|---|
| 1 | -V |
| 2 | +VA |
| 3 | +VB |
| 4 | -V |
| 5 | FUNC EARTH |
| Screw Terminals | | |
|---|
| 5 Pin, 3.5mm Pitch | Wire Cross Section | 0.14mm – 1.5mm |
| AWG Value | #28 – #16 |
| Stripping Length | 7mm / 0.27in |
| Tightening Torque | 0.22Nm – 0.25Nm |
Enclosures
3D models are available for all enclosures. All models use a hardened DIN rail mountable metal enclosure.
DIN-Rail Mounting

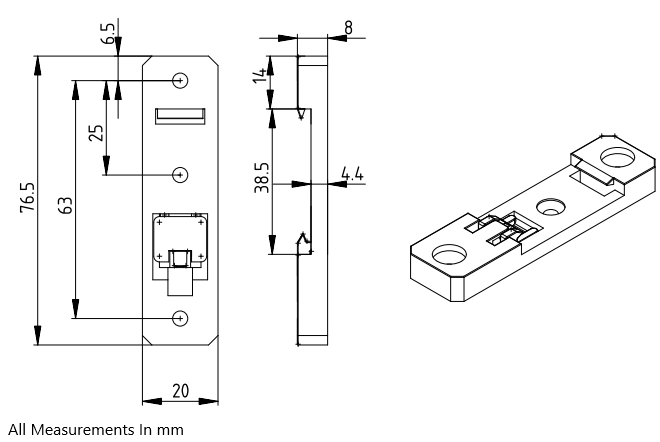

All 16 Port switch products come with a MK-103 DIN Rail clip, which depending on your requirements, can be repositioned into 2 different mounting locations and rotated 180°.
Data
| |
|---|
| SFP Overcurrent Protection | 1.15W (360mA) Maximum |
Power Supply
| |
|---|
| Power Consumption | See General Information table |
| Power Supply Input | Unregulated +5V to +30VDC, dual redundant power inputs, reverse polarity protection |
Environment
| |
|---|
| Operating Temperature | -40°C to +80°C / -40°F to +176°F |
| Storage Temperature | -40°C to +80°C / -40°F to +176°F |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| LED | Colour | Meaning |
|---|
| RJ45 LED | Green | Link/Activity |
| Yellow | Port operating at max speed |
| SFP LED | Green | Power On |
| Amber | SFP Plugged In |
| Amber Flashing | SFP Link/Activity |
| Green/Amber Flashing | SFP Error/Incompatible |
Ethernet
| |
|---|
| Ethernet Port | Up to 16x 10/100BASE-T(X) RJ45 ports (Auto MDI-X), up to 2x 10/100/1000BASE-T RJ45 ports, up to 1x 1000BASE-X SFP port — all ports work concurrently |
| Protection | 1500VRMS Magnetic Isolation between RJ45 (copper twisted pair only) |
Approvals and Support
Industry Approvals
| |
|---|
| General | WEEE, RoHS, CE, UKCA |
| UL | METL Complies with UL62368-1 |
| HTS | 8517620000 |
| ECCN | 5A991.b |
Company Approvals
| |
|---|
| General | ISO9001, ISO14001, Microsoft Certified Gold Partner, AEO (C-TPAT) |
| CAGE | 8QCY6 |
| NCAGE | U0Q96 |
| GSA Contract Number | 47QTCA23D009X |
Support
| |
|---|
| Warranty | Lifetime — online registration required |
| Support | Lifetime web, email and phone support from fully qualified, friendly staff who work in and alongside the Product Development Team |
| OEM Option | Available for bulk buy OEM |
| Country of Origin | Made in GB, United Kingdom of Great Britain & Northern Ireland |
| Customisable | Perfect Fit Custom Design policy for volume users |
| Part Number | Description |
|---|
| SW-7016 | Hardened Industrial 16x 10/100 Ethernet Switch |
| SW-7416 | Hardened Industrial 14x 10/100 & 2x 1G Ethernet Switch |
| SW-7617 | Hardened Industrial 16x 10/100 & 1x SFP Ethernet Switch |
| SW-7717 | Hardened Industrial 14x 10/100, 2x 1G & 1x SFP Ethernet Switch |
Accessories
- PW-301 — 96W Single Output Industrial DIN Power Supply
- PW-245 — 60W Single Output Industrial DIN Power Supply
- PW-400 — Power Adapter 12V 1.5A Terminal Tails UK/EU/US/AUS Pack
