Overview — Less Cost, Less Cabling, Less Maintenance
Designed for demanding environments, Brainboxes Industrial PoE Switches remove the need for costly electrical installations by enabling the transmission of electrical power over the same cable that carries data.
Available with Fast and Gigabit Ethernet, plus SFP, and in a range of enclosures to perfectly fit your application, Brainboxes PoE switches are simple to install, fully conform to IEEE 802.3af/at Ethernet standards for reliable performance, and offer the flexibility to deploy powered devices at almost any location.
Functionality and Features
- 4 PoE+ capable ports
- Fully compliant to IEEE 802.3af/at
- PoE Power Budget: 90W @ 70°C between all 4 PoE ports
- Industrial temp range: -40°C to +70°C
- Redundant dual power inputs: +44V to +57V DC
- Compact design — allows power and data to be combined on the same Ethernet cable
- DIN Rail Mountable or Embedded
Product Variants
| Model | PoE+ (IEEE 802.3af/at) | Fast Ethernet 10/100 BaseT (RJ45) | Gigabit 10/100/1000 BaseT (RJ45) | SFP 1000 Base-X | Enclosure |
|---|
| SW-125 | 4 | 5 | - | - | Embedded |
| SW-525 | 4 | 5 | - | - | Industrial |
| SW-725 | 4 | 5 | - | - | Hardened |
| SW-135 | 4 | - | 5 | - | Embedded |
| SW-535 | 4 | - | 5 | - | Industrial |
| SW-735 | 4 | - | 5 | - | Hardened |
| SW-195 | 4 | - | 4 | 1 | Embedded |
| SW-595 | 4 | - | 4 | 1 | Industrial |
| Model | Power Consumption (excl. PoE) | Operating Temp (°C) | Product Weight (kg) | Product Size (mm) | GTIN (barcode) | Package Weight (kg) | Package Size (mm) |
|---|
| SW-125 | 4W Max: 70mA @ +57VDC | -40 to +70 | 0.079 | 105 x 95 x 20 | 837324004588 | 0.182 | 160 x 135 x 49 |
| SW-525 | 4W Max: 70mA @ +57VDC | -40 to +70 | 0.132 | 116 x 99 x 23 | 837324004533 | 0.235 | 160 x 135 x 49 |
| SW-725 | 4W Max: 70mA @ +57VDC | -40 to +70 | 0.327 | 116 x 99 x 29 | 837324004564 | 0.444 | 160 x 135 x 49 |
| SW-135 | 5.5W Max: 96mA @ +57VDC | -40 to +70 | 0.090 | 105 x 86 x 20 | 837324005066 | 0.162 | 160 x 135 x 49 |
| SW-535 | 5.5W Max: 96mA @ +57VDC | -40 to +70 | 0.137 | 116 x 99 x 23 | 837324005073 | 0.24 | 160 x 135 x 49 |
| SW-735 | 5.5W Max: 96mA @ +57VDC | -40 to +70 | 0.327 | 115 x 99 x 28 | 837324005172 | 0.422 | 160 x 135 x 49 |
| SW-195 | 5.3W Max: 93mA @ +57VDC | -40 to +70 | 0.089 | 105 x 86 x 20 | 837324005189 | 0.160 | 160 x 135 x 49 |
| SW-595 | 5.3W Max: 93mA @ +57VDC | -40 to +70 | 0.136 | 115 x 100 x 23 | 837324005080 | 0.231 | 160 x 135 x 49 |
Pinouts
Ethernet Ports
PoE Pinout: 1/2 (V+), 3/6 (V-) — Endspan Mode A
| Pin | Data 10/100 | Data Gigabit | PoE Power |
|---|
| 1 | Tx+ | TxRx A+ | DC+ |
| 2 | Tx- | TxRx A- | DC+ |
| 3 | Rx+ | TxRx B+ | DC- |
| 4 | | TxRx C+ | |
| 5 | | TxRx C- | |
| 6 | Rx- | TxRx B- | DC- |
| 7 | | TxRx D+ | |
| 8 | | TxRx D- | |

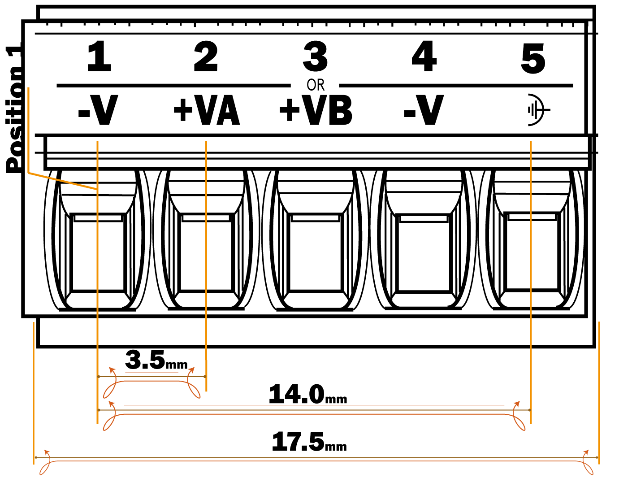

Power Terminal
| Pin | Function |
|---|
| 1 | -V |
| 2 | +VA |
| 3 | +VB |
| 4 | -V |
| 5 | FUNC EARTH |
5 position 3.5mm pitch pluggable terminal block included.
Enclosures
3D models are available for all enclosures.
DIN rail mountable IP-20 rated non-conducting polyamide case.
DIN Rail mountable IP-20 rated hardened metal enclosure.
Data
- Gigabit Ethernet: Jumbo Frame support
- SFP Port: Overcurrent protection
Connectors
| |
|---|
| Screw Terminals | 3.5mm pitch, #22 – #14, 0.5mm² – 2.5mm² pin power supply |
| Wire Thickness | 0.150 inch, 3.81mm, 20 pins, 12+8 screw terminals, #26 – #16 AWG, 0.14mm² – 1.3mm² |
Power Supply
| |
|---|
| Power Consumption | See General Information table |
| PoE Power Budget | 90W @ 70°C — 4 ports IEEE 802.3af/at compliant: deliver up to 30W per port (backwards compatible) |
| Power Supply Input | Unregulated +44V to +57VDC, reverse polarity protection |
| Isolation | 1500VRMS Magnetic isolation from Ethernet |
Environment
| |
|---|
| Operating Temperature | -40°C to +70°C / -40°F to +158°F |
| Storage Temperature | -40°C to +70°C / -40°F to +158°F |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
Ethernet
| |
|---|
| Ethernet Port | 5x RJ45 jack, auto-negotiation, crossover auto-sensing (Auto MDIX) |
| Protection | 1,500 Volts magnetic isolation between ports |
Magjack LEDs
| LED | Colour | Meaning |
|---|
| Link/Activity LED | Solid Green | Connection established |
| Flashing Green | Data communication |
| PoE Power LED (ports 1-4, ports 2-5 SW-X95 only) | Solid Yellow | PoE power ON |
| Flashing Yellow | Power warning |
SFP LED
| LED | Colour | Meaning |
|---|
| SFP Power LED | Solid Green | SFP power ON |
| Solid Amber | SFP plugged in |
| Flashing Amber | SFP activity |
| Flashing Green/Amber | SFP error/incompatible |
Approvals and Support
Industry Approvals
| |
|---|
| General | WEEE, RoHS, CE, UKCA |
| UL | METL Complies with UL62368-1 |
| HTS | 8517620000 |
| ECCN | 5A991.b |
Company Approvals
| |
|---|
| General | ISO9001, ISO14001, Microsoft Certified Gold Partner, AEO (C-TPAT) |
| CAGE | 8QCY6 |
| NCAGE | U0Q96 |
| GSA Contract Number | 47QTCA23D009X |
NATO Stock Numbers
Support
| |
|---|
| Warranty | Lifetime — online registration required |
| Support | Lifetime web, email and phone support from fully qualified, friendly staff who work in and alongside the Product Development Team |
| OEM Option | Available for bulk buy OEM |
| Country of Origin | Made in GB, United Kingdom of Great Britain & Northern Ireland |
| Customisable | Perfect Fit Custom Design policy for volume users |
Accessories
- PW-301 — 96W Single Output Industrial DIN Power Supply
