The Serial Solutions Range

The Brainboxes Serial Solutions range provides reliable serial communication through PCI, PCMCIA, and PCI Express interfaces. This manual covers the UC, PM, CC, and PX-275/279 product ranges, all of which use the Serial Solutions driver software.

UC Product Range​

The UC range includes 1, 2, 4, and 8 port devices which provide RS-232 and/or RS-422/485 9-pin COM ports to any device with a PCI slot. The UC cards are compatible with 3.3V and 5V signalling.

Brainboxes UC PCI Serial Card

PM Product Range​

The PM Product range includes 1 and 2 port devices which provide RS-232 or RS-422/485 9-pin COM ports to any device with a PCMCIA slot.

Brainboxes PM PCMCIA Serial Card

CC Product Range​

The CC Product range includes 1, 2, 4 and 8 port devices which provide RS-232 and/or RS-422/485 9-pin COM ports to any device with a PCI slot. The CC cards are only capable of 5V signalling compared with the UC cards which support both 3.3V and 5V signalling.

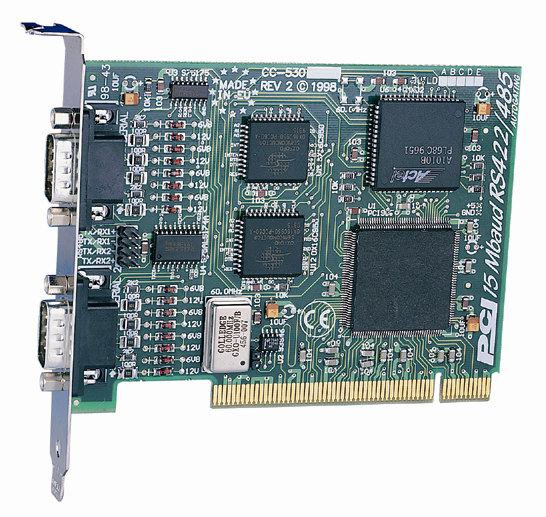

Brainboxes CC PCI Serial Card

PX-275/279​

The Serial Solutions driver also covers the PX-275/279 which provides 8 RS-232 COM ports to any device with a PCI Express slot.

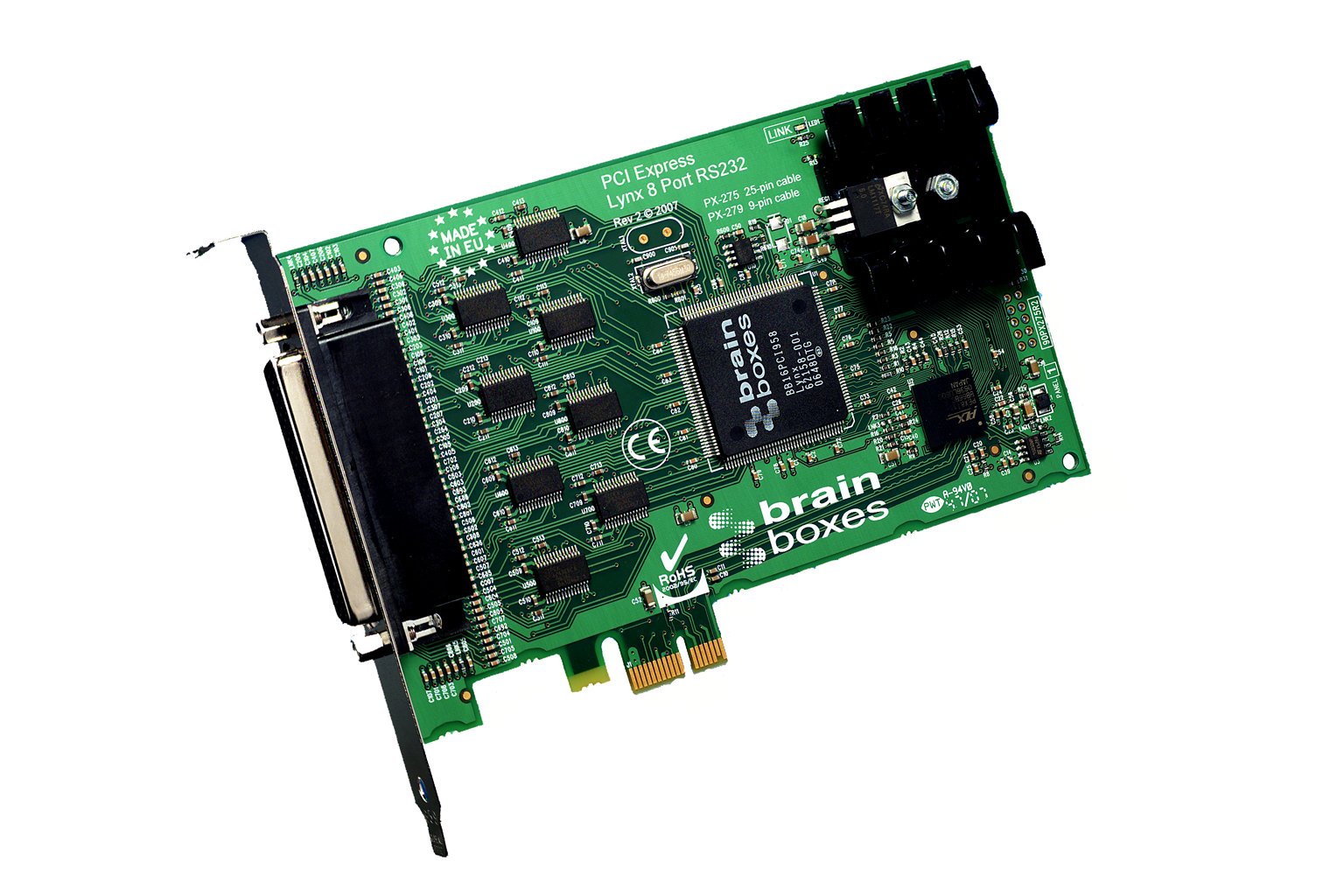

Brainboxes PX-275/279 PCIe Serial Card
