Technical Specifications

Supported Serial Settings

Serial Setting	Supported Values
Baud Rate	300 to 921,600
Data Bits	7 or 8
Parity	None, Odd, Even, Mark & Space
Stop Bits	1 or 2
Handshaking	RTS/CTS, DTR/DSR, Xon/Xoff
Break	Supported

Device Pin-out

RS-232 Devices (VX-001, VX-012)

RS-422/485 Devices (VX-023, VX-034)

Please Note

• DTR/DSR Handshaking is not available on RS-422/485 devices
• For RS-422 FULL Duplex Communications, please note the pin outs above.
• To achieve RS-485 Half Duplex Communications, using two wires for communication, Pins 1 and 6 must be shorted together and pins 2 and 7 must also be physically shorted.
• Once your wiring is setup, you will also need to set the card to FULL or HALF Duplex mode in the software. For further details, see RS-422/485 Settings

RS-422/485 Bias/Terminating Resistors

Applicable to RS422/485 products only

VX-056 (Spacer)

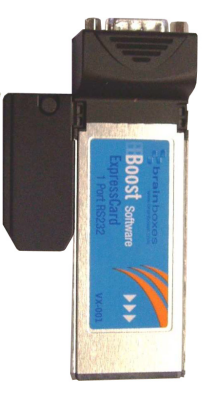

The VX-056 ExpressCard Spacer can be used to firmly secure the connection of a 34mm ExpressCard when it is inserted in the wider style 54mm slot. This enables you to choose from any of Brainboxes' ExpressCard options whatever the style of laptop you own.

Physical Specifications

Product	Size	Weight
VX-001	34mm x 102mm x 19mm	0.030kg
VX-023	34mm x 102mm x 19mm	0.030kg
VX-012	34mm x 75mm x 6mm	0.018kg
VX-034	34mm x 75mm x 6mm	0.018kg

Storage and Operating Environment Guidelines

Storage

• Temperature: -10°C to +70°C
• Humidity: 8% to 95% non-condensing

Operational

• Temperature: 0°C to +70°C
• Humidity: 20% to 75% non-condensing
